Specifications

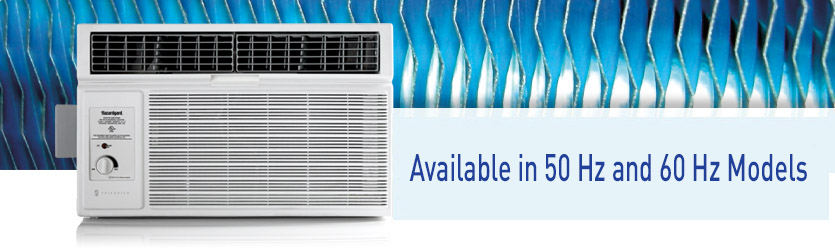

Hazardgard is available in a variety of sizes and capacities, including our new ATEX/IECEx models. Click on a specific model below for more installation, measurement and electrical information.

For a detailed definition of the following terms, please hover your mouse over the question mark (?).

Moisture Removal
Moisture Removal determines the air conditioner’s dehumidifying capability in pints per hour.
 4.0–8.0 pints/24 hours
Air Circulation (CFM)
The Air Circulation, or CFM, is the amount of air in one minute that passes a stationary point. This is measured in cubic feet per minute.
 360-425 ft3/min
Cooling Capacity
Btu, or British Thermal Unit, is the amount of heat that is required in order to increase the temperature of one pound of water by one degree of Fahrenheit. The Btu rating is used to determine air conditioner capacity and match a specific air conditioning model with your heating and cooling needs.
 14500–24000 Btu/hr
EER
EER, or Energy Efficient Ratio, is the measurement of an air conditioner’s efficiency when the outdoor temperature is 95°. This ratio is determined by dividing the Btu per hour, or cooling capacity, by the amount of power needed to operate the unit (watts). EER’s that are higher are more efficient and cost less to operate.
 8.5–9.7

Individual Specifications

Click model number for detailed specifications.

Hazardgard 60 Hertz (North America)

Model Cooling Capacity
(Btu/hr)		 Heating Capacity
(Btu/hr)		 EER Hertz Unit Height Unit Width
SH15M30A 14500/14000 n/a 9.7/9.7 60 15 15/16" 25 15/16"

  • Unit Dimensions

    Height
    15 15/16"
    Width
    25 15/16"
    Depth
    27 3/8"

  • Window Dimensions

    Min. height
    16 1/2"
    Min. width
    27 7/8"
    Max. width
    42"

  • In-Wall Installation

    Opening height
    16 3/16"
    Opening width
    26 3/16"
    Max. wall depth
    6"

Additional Measurement Information

Min. Extension Into Room
3 1/16"
Min. Extension Outside
16 15/16"

Detailed Electrical Information

Voltage/Hertz/Phase
230/208/60/1
Circuit Rating Breaker or T-D Fuse
250V-15A
Cooling Amps
6.9/7.5
Cooling Watts
1495/1443
Air Circulation
375 cubic feet per minute
Air Direction Controls
8-way
Moisture Removal
4.0 pints/24 hours
Net Weight
140 lbs
Shipping Weight
167 lbs
Suggested Retail Price
Click here to contact us for current retail pricing.
SH20M30B 19000/19000 n/a 9.7/9.6 60 17 15/16" 25 15/16"

  • Unit Dimensions

    Height
    17 15/16"
    Width
    25 15/16"
    Depth
    27 3/8"

  • Window Dimensions

    Min. height
    18 1/2"
    Min. width
    27 7/8"
    Max. width
    42"

  • In-Wall Installation

    Opening height
    18 3/16"
    Opening width
    26 3/16"
    Max. wall depth
    6"

Additional Measurement Information

Min. Extension Into Room
3 1/16"
Min. Extension Outside
16 15/16"

Detailed Electrical Information

Voltage/Hertz/Phase
230/208/60/1
Circuit Rating Breaker or T-D Fuse
250v-15 (230v), 250v-20 (208v)
Cooling Amps
8.5/9.4
Cooling Watts
1965/1970
Air Circulation
375 cubic feet per minute
Air Direction Controls
8-way
Moisture Removal
5.5 pints/24 hours
Net Weight
166 lbs
Shipping Weight
170 lbs
Suggested Retail Price
Click here to contact us for current retail pricing.
SH24M20 24000/23700 n/a 8.8/8.5 60 17 15/16" 25 15/16"

  • Unit Dimensions

    Height
    17 15/16"
    Width
    25 15/16"
    Depth
    27 3/8"

  • Window Dimensions

    Min. height
    18 1/2"
    Min. width
    27 7/8"
    Max. width
    42"

  • In-Wall Installation

    Opening height
    18 3/16"
    Opening width
    26 3/16"
    Max. wall depth
    6"

Additional Measurement Information

Min. Extension Into Room
3 1/16"
Min. Extension Outside
16 15/16"

Detailed Electrical Information

Voltage/Hertz/Phase
230/208/60/1
Circuit Rating Breaker or T-D Fuse
250V-15A
Cooling Amps
12.6/13.5
Cooling Watts
2727/2788
Air Circulation
385 cubic feet per minute
Air Direction Controls
8-way
Moisture Removal
8.0/7.5 pints/24 hours
Net Weight
180
Shipping Weight
185
Suggested Retail Price
Click here to contact us for current retail pricing.

Hazardgard 50 Hertz (International)

Model Cooling Capacity
(Btu/hr)		 Heating Capacity
(Btu/hr)		 EER Hertz Unit Height Unit Width
SH20M50A/SH20N50AT 19500/19100 n/a 9.0/9.0 50 17 15/16" 25 15/16"

  • Unit Dimensions

    Height
    17 15/16"
    Width
    25 15/16"
    Depth
    27 3/8"

  • Window Dimensions

    Min. height
    18 1/2"
    Min. width
    27 7/8"
    Max. width
    42"

  • In-Wall Installation

    Opening height
    18 3/16"
    Opening width
    26 3/16"
    Max. wall depth
    6"

Additional Measurement Information

Min. Extension Into Room
3 1/16"
Min. Extension Outside
16 15/16"

Detailed Electrical Information

Voltage/Hertz/Phase
240/220/50/1
Circuit Rating Breaker or T-D Fuse
20 Amp
Cooling Amps
9.8/10.3
Cooling Watts
2167/2156
Air Circulation
425 cubic feet per minute
Air Direction Controls
8-way
Moisture Removal
5.6/5.5 pints/24 hours
Net Weight
171 lbs
Shipping Weight
175 lbs
Suggested Retail Price
Click here to contact us for current retail pricing.
SH24M20/SH24N20AT 21000/20500 n/a 8.1/8.5 50 17 15/16" 25 15/16"

  • Unit Dimensions

    Height
    17 15/16"
    Width
    25 15/16"
    Depth
    27 3/8"

  • Window Dimensions

    Min. height
    18 1/2"
    Min. width
    27 7/8"
    Max. width
    42"

  • In-Wall Installation

    Opening height
    18 3/16"
    Opening width
    26 3/16"
    Max. wall depth
    6"

Additional Measurement Information

Min. Extension Into Room
3 1/16"
Min. Extension Outside
16 15/16"

Detailed Electrical Information

Voltage/Hertz/Phase
240/220/50/1
Circuit Rating Breaker or T-D Fuse
250V-15A
Cooling Amps
15.0/13.2
Cooling Watts
2600/2412
Air Circulation
360 cubic feet per minute
Air Direction Controls
8-way
Moisture Removal
7.0/7.0 pints/24 hours
Net Weight
180
Shipping Weight
185
Suggested Retail Price
Click here to contact us for current retail pricing.

Installation

Each Hazardgard unit, from our 2011 models to present, can be conveniently installed through a window or wall. If installing through a wall, the wall depth must meet the unit specifications:

A. 27 3/8 inches deep

B. Junction box to louvers is 6 inches deep

C. Maximum thru-the-wall finished hole depth is 6 inches
